Official Original Stäubli MC4-Evo 2 — The industry benchmark for high-voltage photovoltaic systems. Designed for extreme environments, offering unrestricted access for DC 1500V (IEC / JET / UL) applications.
Key Features & Technical Specifications:

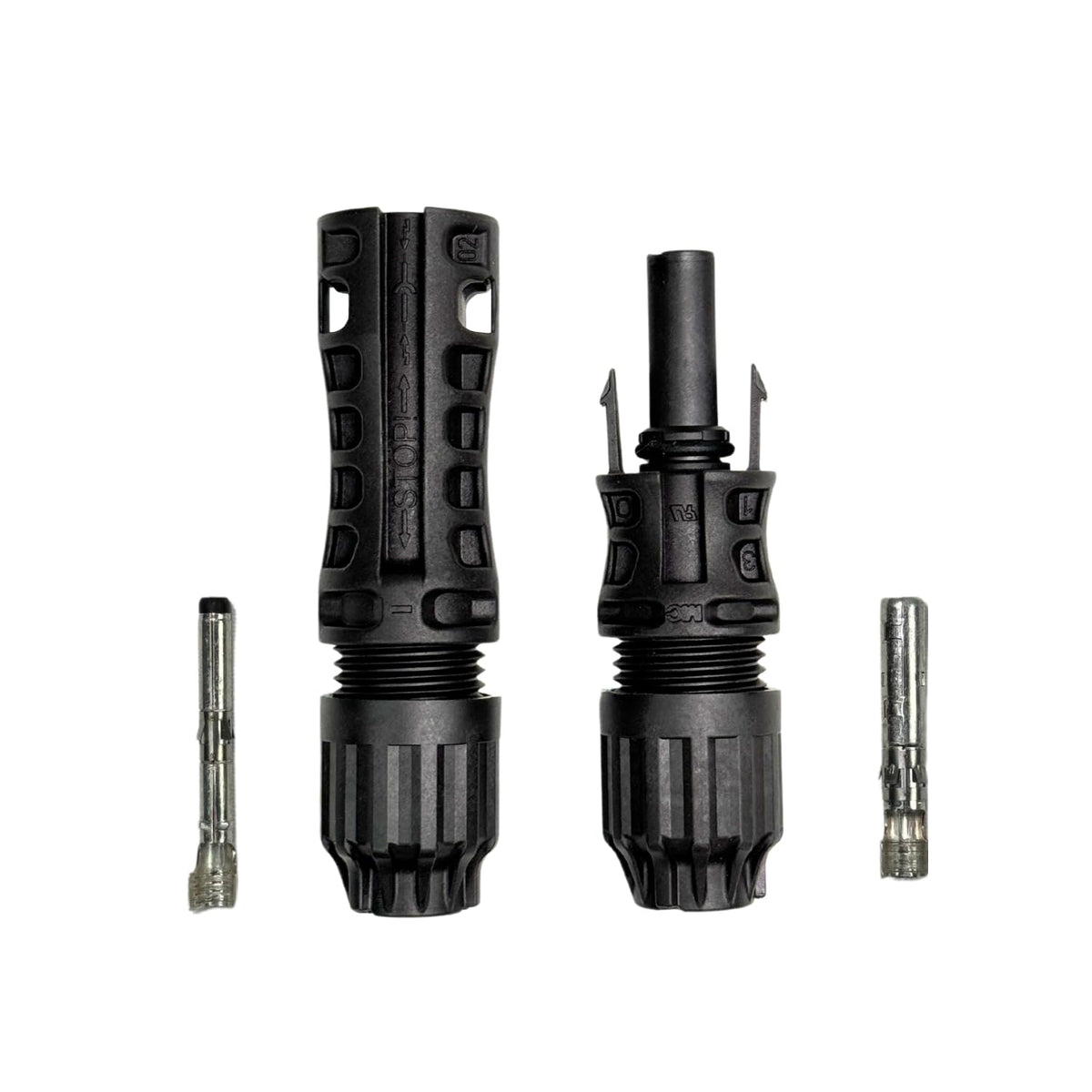

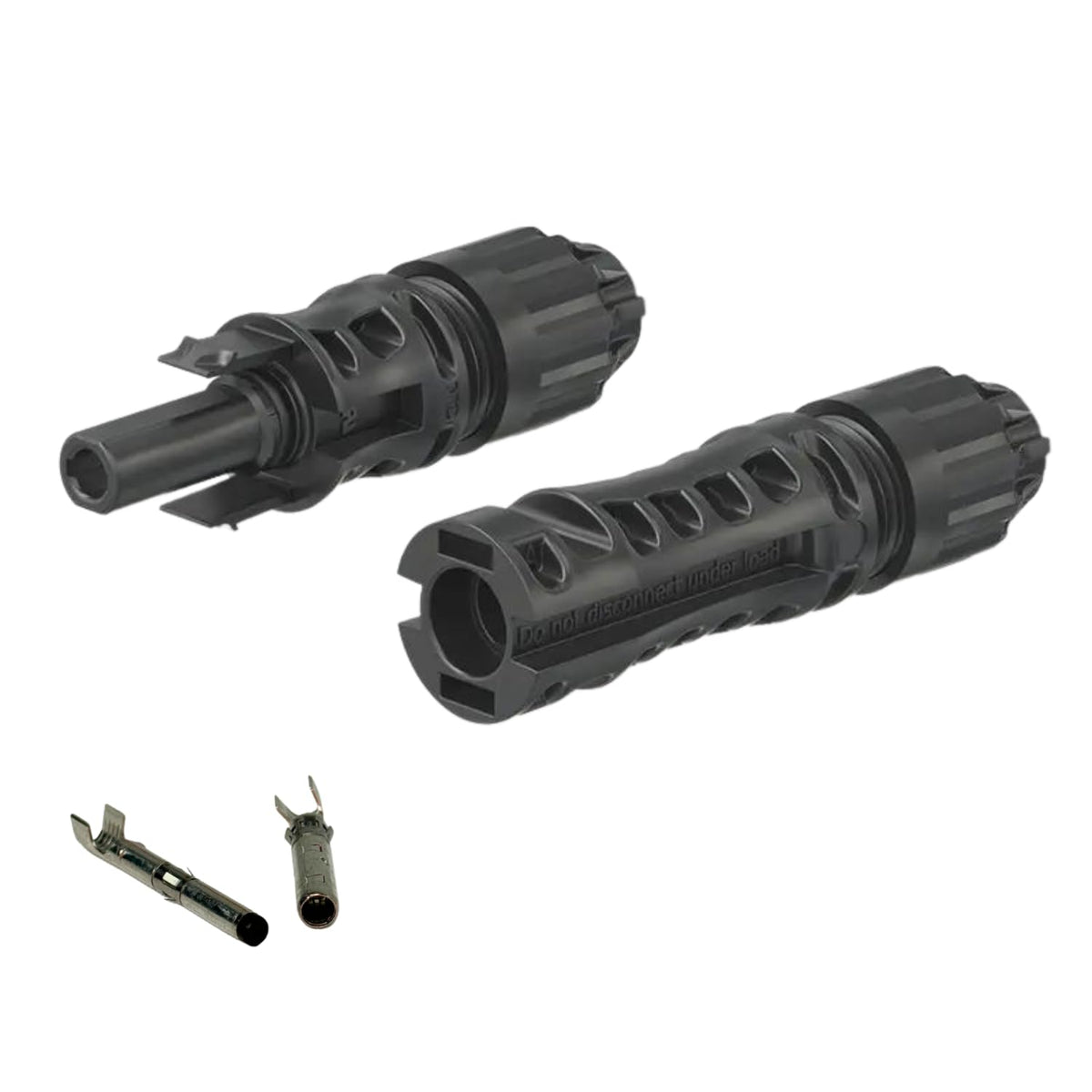

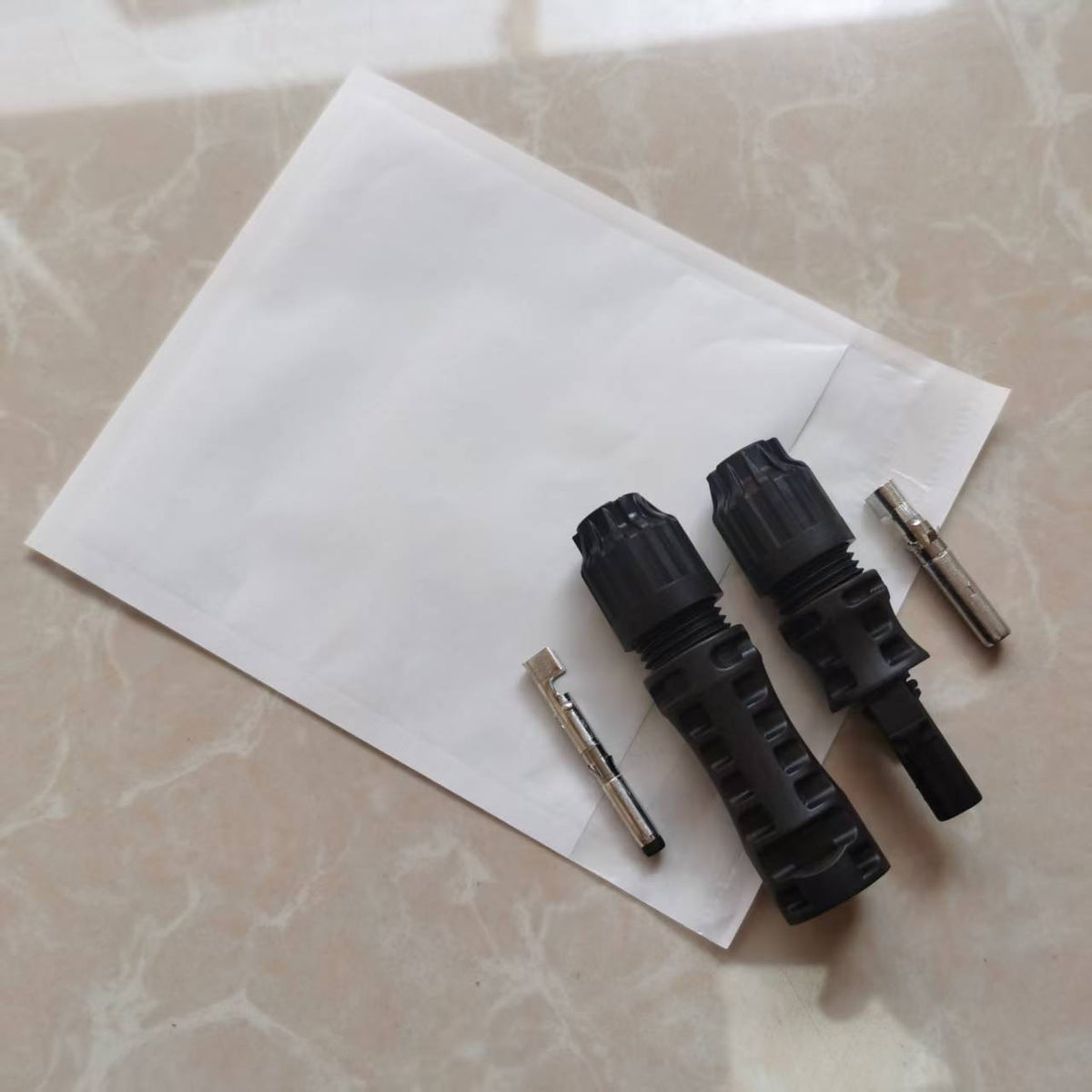

Brand & Model: Original Stäubli MC4-Evo 2 (Available in Female/Male pairs or individual components)
Voltage Rating: Approved for DC 1500V (IEC/UL)
Contact Technology: Advanced MULTILAM Technology, ensuring proven durability and ultra-low contact resistance ($< 0.2\text{ m}\Omega$) over millions of connections.
Ingress Protection:IP65 / IP68 (1 m, 1 h) when mated; IP2X when unmated.
Temperature Range:$-40^\circ\text{C}$ to $+85^\circ\text{C}$ (IEC) / $+90^\circ\text{C}$ (UL).
Cable Cross-Section Compatibility: Supports $2.5\text{ mm}^2$ up to $10\text{ mm}^2$ (AWG 14 to AWG 8) depending on the specific part variant.
Flame Class & Materials: UL94-V0 flammability rating, tin-plated copper contact material with robust PA insulation.
Certifications & Compliance:
TÜV Rheinland Certified (according to IEC 62852:2014+Amd.1:2020)
UL Recognized Component (in accordance with UL6703, File: E343181)
Ammonia Resistance Certified by TÜV Rheinland
Looking for bulk orders, reel packaging, or specific cross-sections ($4\text{ mm}^2$ / $6\text{ mm}^2$ / $10\text{ mm}^2$)? [Contact our sales team for wholesale pricing and official compliance documentation.]
